Item |
Temper |
Thickness
(mm) |
Width
(mm) |
Length
(mm) |
Weight(mt) |
Inner Dia.(mm) |
|
Coil |
T1-T5
DR7-DR9 |
0.115-0.5 |
600-1050 |
---- |
3-8 |
508 |
|
Sheet |
T1-T5
DR7-DR9 |
0.115-0.50 |
600-1050 |
600-1200 |
Max.2 |
---- |
TIN COATING
|
Type of Coating |
Designation of Coating Weight |
Nominal coating Weight |
Minimum ave. Coating Weight |
|
|
JIS |
ASTM |
g/m² |
lb/BB |
g/m² |
lb/BB |
|
Equally Coating |
1.1/1.1 |
#10 |
1.1/1.1 |
0.10 |
0.9/0.9 |
0.08 |
|
|
2.8/2.8 |
#25 |
2.8/2.8 |
0.25 |
2.45/2.45 |
0.22 |
|
|
5.6/5.6 |
#50 |
5.6/5.6 |
0.50 |
5.05/5.05 |
0.47 |
|
Different Coating |
1.1/2.8 |
#10/25 |
1.1/2.8 |
0.10/0.25 |
0.9/2.45 |
0.08/0.11 |
|
|
2.8/5.6 |
#25/50 |
2.8/5.6 |
0.125/0.25 |
2.25/5.05 |
0.11/0.23 |
SURFACE FINISH
|
Marks |
Surface State |
Surface Roughness Range |
|
B |
Bright finish |
Surface Roughness:0.2μm-0.35μm |
|
R |
Stone finish |
Surface Roughness:0.3μm-0.45μm |
|
S |
Sand finish |
Surface Roughness:1.8μm-2.0μm |

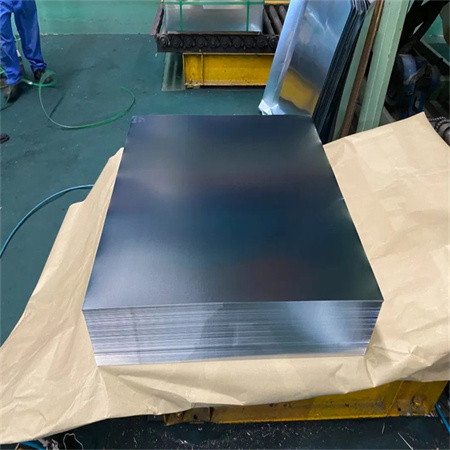

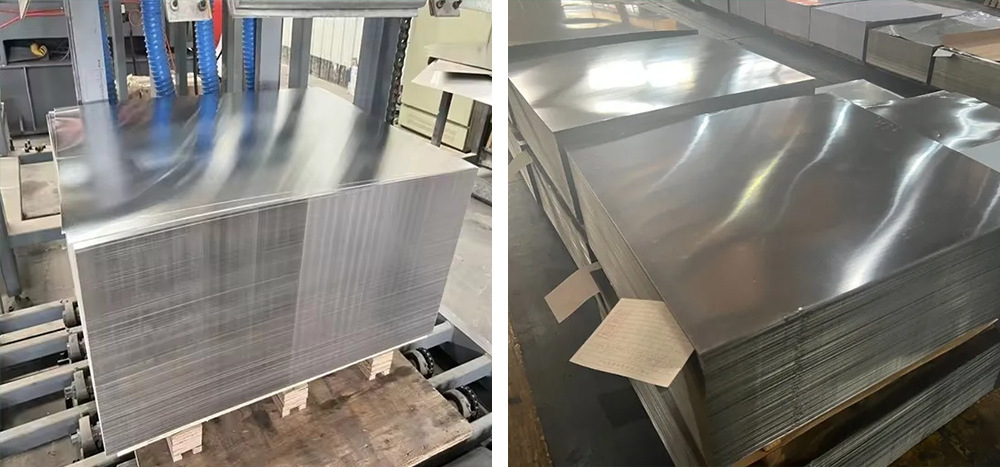

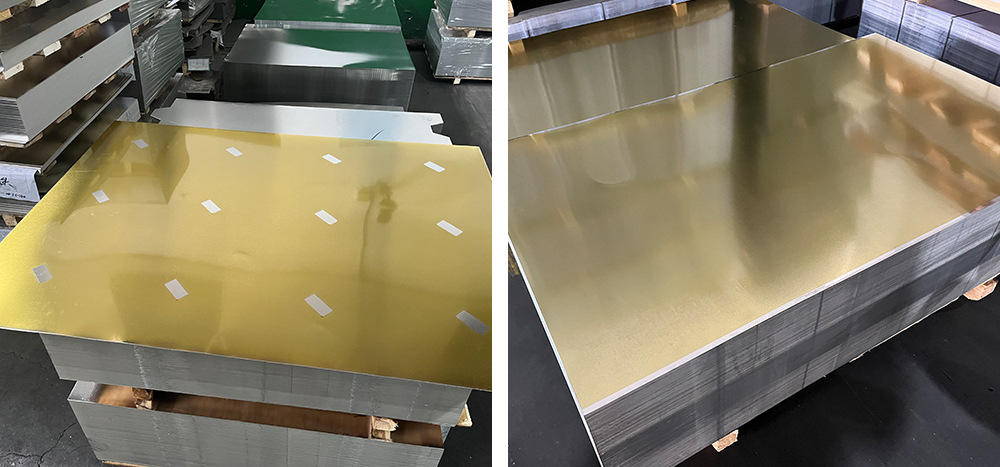

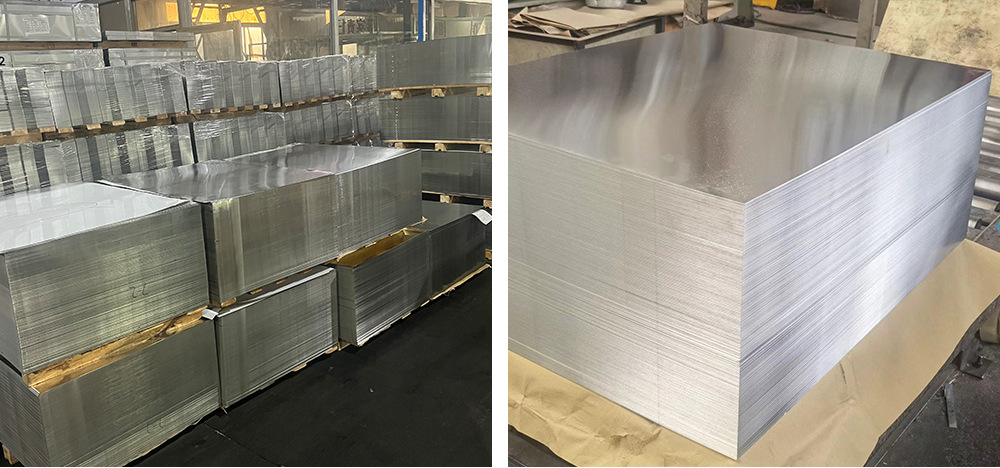

Our tin plate (also named electroplated tin sheet) is a high-quality metal product made of cold-rolled steel as the base material, with a uniform tin layer plated on the surface through advanced electroplating technology. It combines the strength of steel and the corrosion resistance, ductility, and food safety of tin, making it an ideal choice for various industries.
This electroplated tin plate features excellent surface smoothness, consistent tin coating thickness, and strong adhesion, ensuring stable performance in processing such as stamping, bending, and welding. It is non-toxic, tasteless, and compliant with international food contact standards (including FDA, EU 10/2011), widely used in food packaging (cans, cookie tins), chemical packaging, electronic components, and decorative materials.
We offer customized tin plate sheets in different specifications (thickness: 0.115-0.5mm, width: 600-1050mm) and tin coating weights (2.8g/m²-15g/m²) to meet diverse customer needs. Our tin plates are produced with strict quality control, achieving high rust resistance, long service life, and environmental friendliness, fully complying with global environmental protection regulations.
Choose our premium tin plate for reliable quality, competitive prices, and timely delivery. It is your trusted partner for packaging and industrial applications.

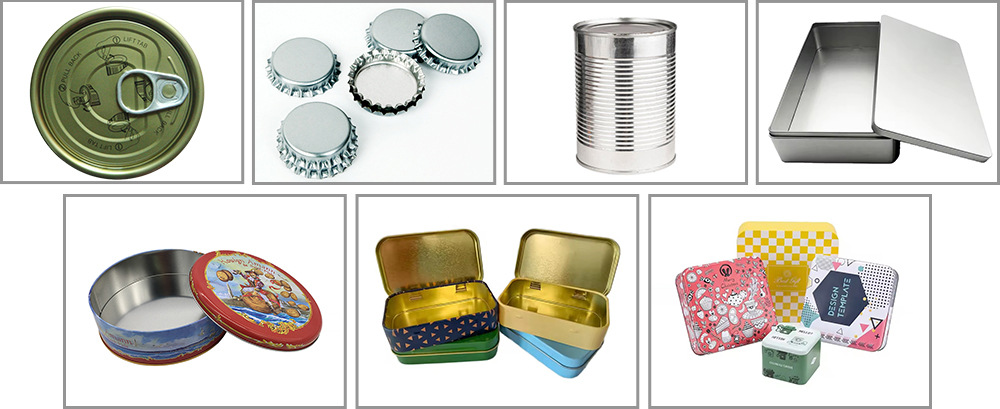

1.Food & Beverage Packaging: Ideal for cans (fruits, meats, sauces, drinks) with corrosion resistance, food safety, and oxygen/moisture barrier, extending shelf life.
2.Chemical Packaging: Reliable for paints, lubricants, solvents. Corrosion-resistant, recyclable, fits sustainable packaging needs.
3.Aerosol & Specialty Cans: Used for aerosol cans (cosmetics, cleaners) and decorative tins (tea, candles) due to formability and printability.
4.Electrical Components: Suitable for battery casings, transformers. Features good conductivity and solderability, with EMI protection.
5.Construction & Hardware: Made into fasteners, decorative parts. Corrosion-resistant for outdoor use, malleable for surface treatments.
